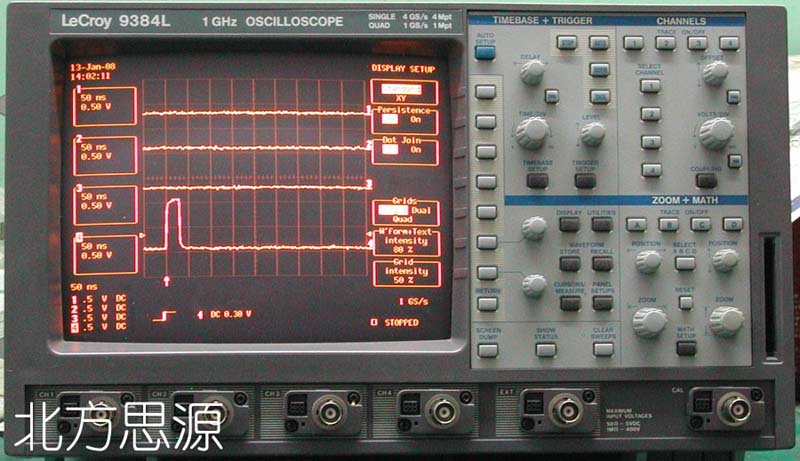

1GHz 數字存儲示波器 LeCroy 9384L 廠家：美國力科 （ 21 x 37 x 41cm，13kg） 主要特點: 1 GHz帶寬,4通道 采樣率可達4 GSa/s 最大8M存儲深度 8-bit垂直分解度 最高精度可達1%（典型值） 觸發頻率1 GHz 最高峰值采集 Glitch, Pattern, Qualified, Interval, Dropout, TV, and Exclusion Triggers 單色9寸CRT顯示 3.5寸軟驅 內置打印機 PCMCIA硬盤和存儲卡 GPIB和RS-232-C接口 配選件：柱狀圖和FFT信號分析 1 GHz帶寬 The 9384 series digital storage oscilloscope opens up new horizons for engineers and scientists at the leading edge of technological developments. With 1 GHz bandwidth and long acquisition memories, it is now possible to reveal previously hidden waveform details. Narrow glitches are more accurately defined; risetime measurements below 1 nanosecond are more precise; and high-frequency content, filtered out in lower bandwidth systems, is retained, thereby preserving signal amplitudes and overall signal integrity. Edge Triggering to 1GHz and LeCroy‘s powerful Smart™ Trigger modes like：Glitch, Pattern, Dropout, Interval, Exclusion and TV enable you to capture precisely the events of interest. 4 GS/s采樣速率 The 9384 samples simultaneously on all channels at 1 GS/s. Thus, it is ideal for demanding high speed applications. In addition, two channels can be combined to provide a sample rate of 2 GS/s or 4 GS/s in single channel mode. Finer horizontal resolution and accuracy are assured by high sample rates. This is especially critical in digital design where unpredictable circuit behavior needs to be identified and analyzed in detail to be fully understood. Together with this excellent single-shot performance the 9384 series also provides a sample rate equivalent to 10 GS/s for repetitive signals. The innovative peak-detect mode enables glitch capture even at the slowest time settings without loss of precision. 8M Points存儲深度 Channel record lengths of 100k, 500k and 2M are available on the 9384. The memory power is revealed when the user seeks to sample at the highest speed over many timebase settings. DSO‘s with less memory may boast a high sample rate for short waveforms, but only LeCroy‘s long memory oscilloscope can deliver high sample rates for long waveforms. To exploit this capability to its fullest, the LeCroy 9384AL combines its channel acquisition memories to give the user up to 8 million sample points, thereby providing the waveform detail required on long and complex signals. The combined capabilities of the 9384 place it in the forefront of DSO capability.
