KTB PS-200W 工業電源
企業信息
普通會員第20年
公司類型： 生產商
主運營：工業主板、工業平板電腦、工業網絡防火墻、便攜式...
所在地區：北京市
注冊時間：2006-11-16
同類優質產品
更多+
產品分類
產品新聞
產品介紹
特性：
．Input Range:220VAC
．Dimension:200＊100＊40.5mm
．Total Power:200W
系統規格：

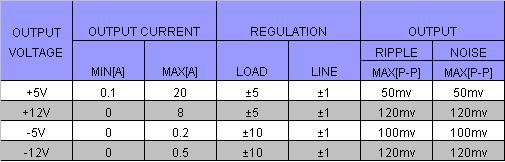

·200W 4 outputs
·Meet Intel AT 2.01/AT 2.03
·Operating temperature range from 0℃ to 50℃
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 200W max
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over power protection :150% max of rated output
·Over voltage protection on +5V ,+12V
·Short circuit protection on all output
·Mechanical Dimension: W x L x H = 200x100x40.5mm
系統規格：
·200W 4 outputs
·Meet Intel AT 2.01/AT 2.03
·Operating temperature range from 0℃ to 50℃
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 200W max
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over power protection :150% max of rated output
·Over voltage protection on +5V ,+12V
·Short circuit protection on all output
·Mechanical Dimension: W x L x H = 200x100x40.5mm
